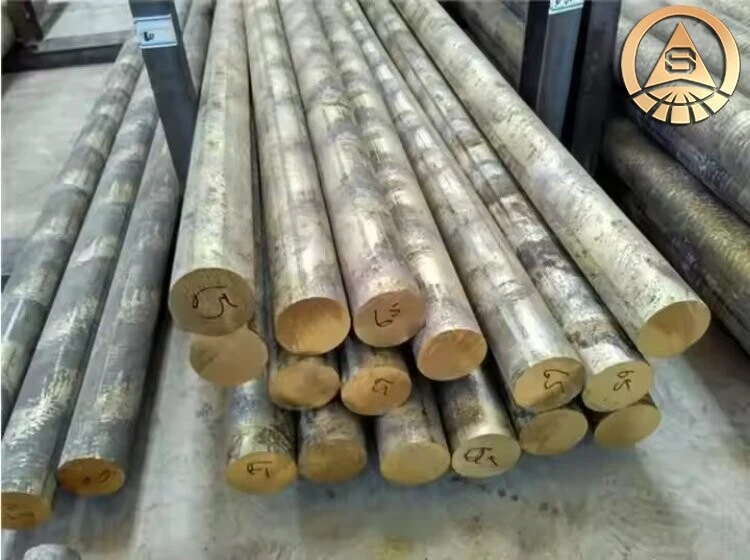

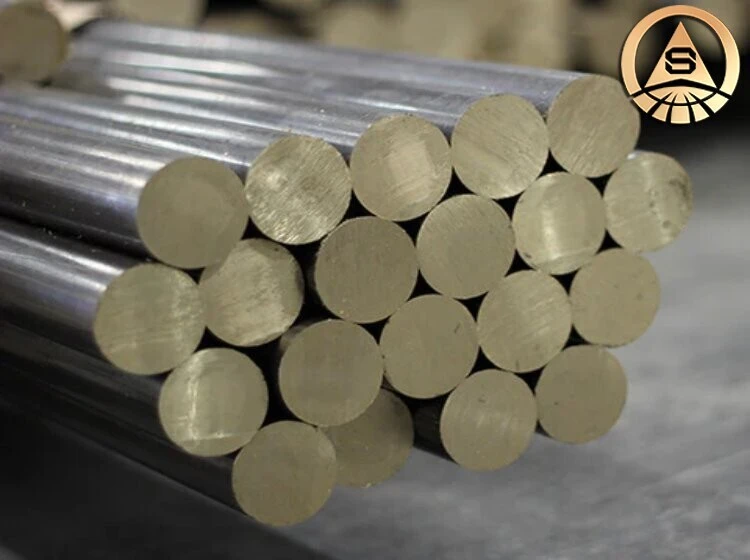

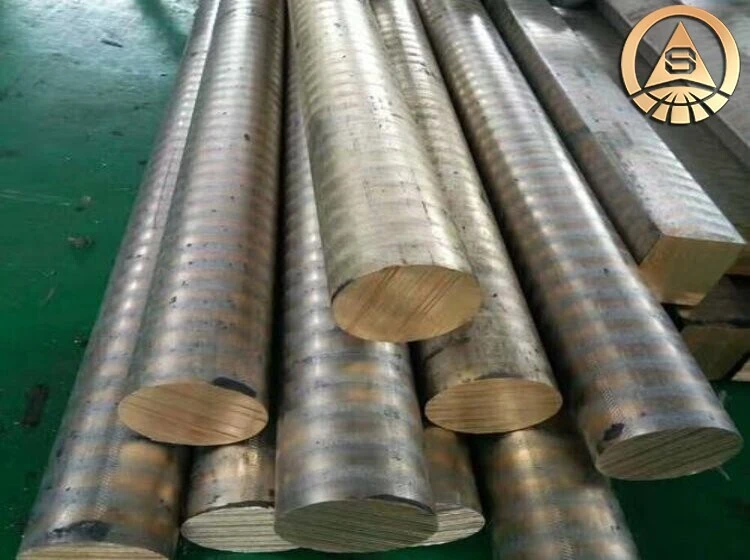

MN3977 Manganese Bronze Bar



Location： HOME > BRONZE > Bronze Bar Rod > MN3977 Manganese Bronze Bar





MN3977 Manganese Bronze Bar

Payment Term:TT,L/C,etc
Price Term:Ex-Work,FOB,CNF,CFR,etc
MOQ:1Ton
Delivery Time:Usually 7-30days, or upon negotiation
Loading Port:TIANJIN,SHANGHAI,DALIAN ,QINGDAO,etc
Package:Standard export package,such as wooden box or as required.
Samples:Free samples are provided but the freight is borne by the buyer

Email:contact@jdxtg.com

WhatsApp:+86 189 2152 5666

Leave a message online

Product Description

Catalog No.	MN3977
Material	Manganese Bronze (863 Bronze)
Standard	ASTM B505
Shape	Bar
Size	Customized

Manganese Bronze Bar (863 Bronze) can handle heavy loads and high speeds when properly lubricated.

Manganese Bronze Bar (863 Bronze) Description

Manganese Bronze Bar (863 bronze) can handle heavy loads and high speeds when properly lubricated. These bars are a higher-strength alternative to tight-tolerance 954 bearing bronze bars. They’re precision ground on the top and bottom for a tight thickness tolerance, saving you the work of machining them.

Manganese Bronze Bar (863 Bronze) Specifications

Property	Value
Density g/cm^3	8
Modulus of Elasticity KSI x 10^3	16
Brinell hardness	250
Melting Point °F	1630 - 1690
Elongation Typical %	14
Specific Heat BTU/lb-°F (32-212F)	0 min
Thermal conductivity BTU-in/hr-ft^2-°F	240
Ultimate KSI	120
Yield KSI	69

Size (In Stock)

Width (inch)	Thickness (Inch)	Length (ft.)
1, 1 1/2, 2, 3, 4	45659	1/2, 1, 2, 3
3/4, 1, 1 1/2, 2	45720	1/2, 1, 2, 3
1, 1 1/2, 2 1/2, 4, 5, 6	1	1/2, 1, 2, 3

Manganese Bronze Bar (863 Bronze) Applications

1. Marine Engineering: Widely used for propellers, shafts, and marine components due to its excellent corrosion resistance in seawater.

2. Aerospace: Applied in aerospace applications for its strength, corrosion resistance, and suitability for high-stress environments.

3. Automotive and Heavy Equipment: Utilized for bearings, bushings, gears, and other components in the automotive and heavy machinery industries due to its durability and wear resistance.

4. Electrical Equipment: Employed in the manufacturing of electrical connectors and components owing to their favorable electrical conductivity.

Manganese Bronze Bar (863 Bronze) Packaging

Our Manganese Bronze Bar (863 Bronze) is carefully handled during storage and transportation to preserve the quality of our product in its original condition.

Product Details

Material

China	International Standards	USA	Japan	UK	Germany
T2	Cu-RTP	C11000	C1100	C101	R-Cu57
TU1	Cu-OF	C10200	C1020	C110	OF-Cu
TU2	Cu-OF	C10300	C1030	C103	OF-Cu
TP1	Cu-DLP	C12000	C1201	---	SW-Cu
H62	CuZn40	C27400	C2720	CZ109	CuZn40
H65	CuZn35	C27000	C2680	CZ107	CuZn36
H70	CuZn30	C26000	C2600	CZ106	CuZn30
H80	CuZn20	C24000	C2400	CZ103	CuZn20
H85	CuZn15	C23000	C2300	CZ102	CuZn15
H90	CuZn10	C22000	C2200	CZ101	CuZn10
QSn6.5-0.1	CuSn6	C51900	C5190	---	CuSn6
QSn8-0.3	CuSn8	C52100	C5210	---	CuSn8
QAl9-4	AlSi9Cu4	C95500	CAC702	AB1	CuA110Fe3Mn2
QCr0.5	Cr0.5	AISI 4140	708M40	SCM440	42CrMo4
CuNi30	CuNi30	---	---	CM390H	---
CuNi10Fe	CuNi10Fe	C71500	C7060	---	---
CuNi15	CuNi15	C70600	C7060	---	---

Chemical Composition

Brand	Cu+AG	P	Bi	Fe	Ni	Pb	Sn	Zn	S	O	Total impurities
C10200	99.95	0.001	0.001	0.005	0.002	0.003	0.002	0.005	0.005	0.02	0.05
C11000	99.9	--	0.001	0.005	--	0.005	--	--	0.005	--	0.1
C12500	99.7	--	0.002	--	--	0.01	--	--	--	--	0.3
C10100	99.99	0.0003	0.0001	0.001	--	0.0005	0.0002	0.0001	0.0015	0.0005	0.01
C10200	99.97	0.002	0.001	0.004	0.002	0.003	0.002	0.003	0.004	0.002	0.03
C10300	99.95	0.002	0.001	0.004	0.002	0.004	0.002	0.003	0.004	0.003	0.05
C12000	99.9	0.004-0.012	--	--	--	--	--	--	--	--	0.1
C64210	90	0.0001	0.0005	0.005	0.005	0.0005	0.001	0.001	0.0001	0.0005	0.001
C52480	60-70	0.0001	0.0005	0.005	0.005	0.0005	0.001	0.003-0.004	0.0001	0.0005	0.001
C50200	50	0.0001	0.0005	0.005	0.005	0.0005	0.001	0.005	0.0001	0.0005	0.001
C71100	70-80	0.0001	0.0005	0.005	0.005	0.0005	0.001	0.002-0.003	0.0001	0.0005	0.001
C70900	70-80	0.0001	0.0005	0.005	0.005	0.0005	0.001	0.002-0.003	0.0001	0.0005	0.001
C70600	60-70	0.0001	0.0005	0.005	0.005	0.0005	0.001	0.003-0.004	0.0001	0.0005	0.001
Cuzn10	90	0.0001	0.0005	0.005	0.005	0.0005	0.001	0.001	0.0001	0.0005	0.001
C12200	99.9	0.015-0.04	--	--	--	--	--	--	--	--	0.1
