Hdhc Tinned Copper Busbar



Location： HOME > COPPER > Copper Busbar > Hdhc Tinned Copper Busbar





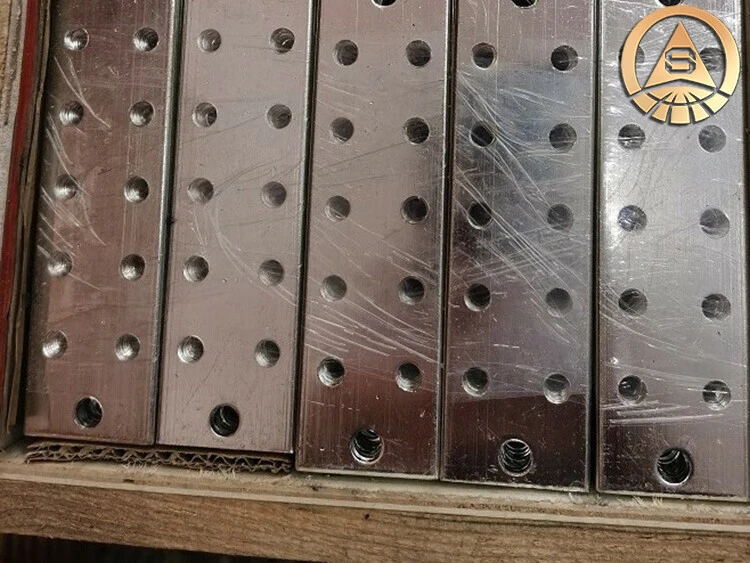

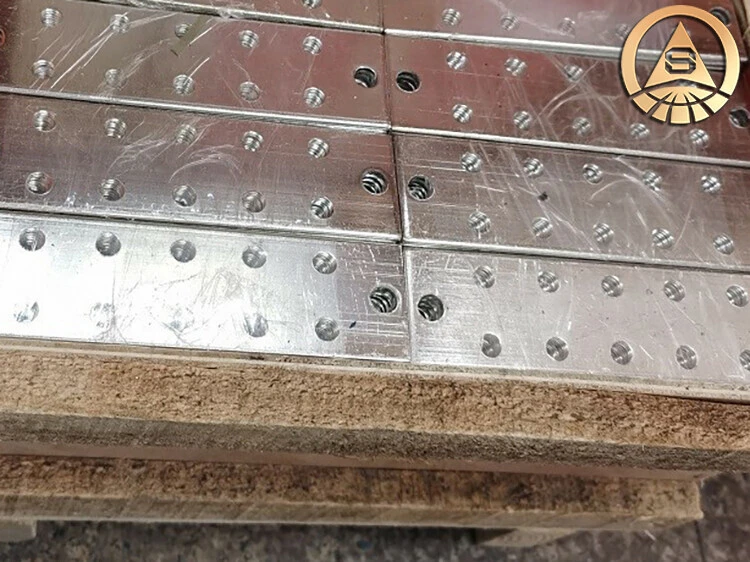

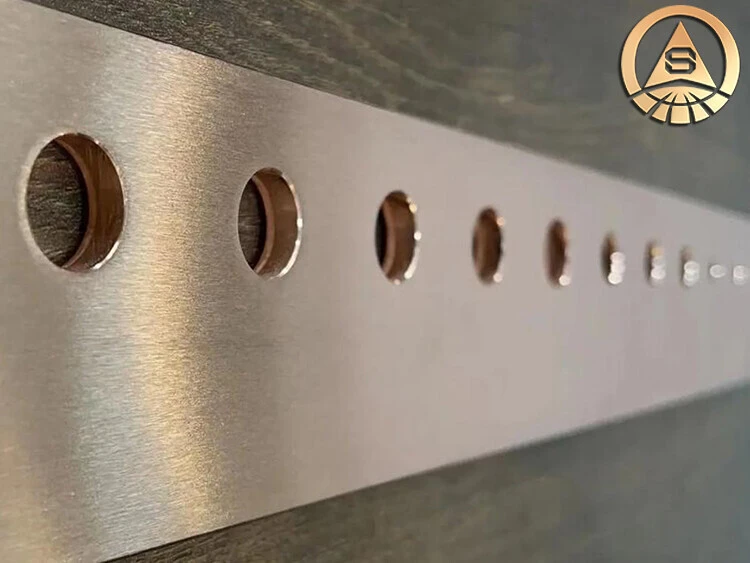

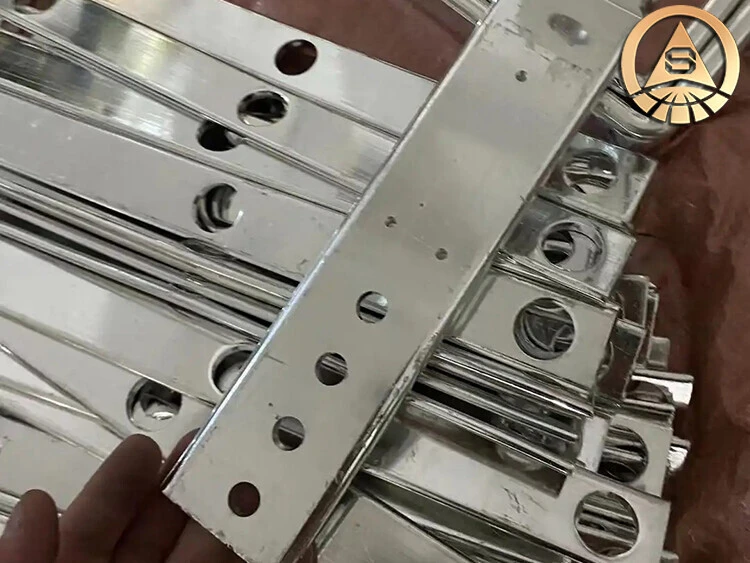

Hdhc Tinned Copper Busbar

Payment Term:TT,L/C,etc
Price Term:Ex-Work,FOB,CNF,CFR,etc
MOQ:1Ton
Delivery Time:Usually 7-30days, or upon negotiation
Loading Port:TIANJIN,SHANGHAI,DALIAN ,QINGDAO,etc
Package:Standard export package,such as wooden box or as required.
Samples:Free samples are provided but the freight is borne by the buyer

Email:contact@jdxtg.com

WhatsApp:+86 189 2152 5666

Leave a message online

Product Description

What does HDHC mean? It means High Density High Conductivity. This tinned copper busbar is used to distribute electrical power in a safe and efficient manner. Copper with tin coat, it gets strength from these coating which does not allow to rust or corrosion over duration of time. This makes the busbar fairly resistant to breaking and able to last a very long time (i. e., you will have it for years and not break or wear out).

Available Copper Grades:C11000/C12200/C18000 .SHANXI SUPERIOR METAL is the best Tinned copper busbar manufacturer in China.Tinned busbars are manufactured by state-of-the-art Electrolytic Tinning process, using a computerized system, which provides the best quality of tinned busbars to be used in Electrical Panels, Switchgears and Transformers.

Specifications:

Coating Thickness (default): 6 microns (Special coating thickness can be obtained upon request)
Purity of coating material: Minimum 99.85%, as per ASTM B339

Lab Testing:

SUPERIOR are capabile of performing all required tests for tinned busbars, like;
Tin Thickness test
Adhesion test

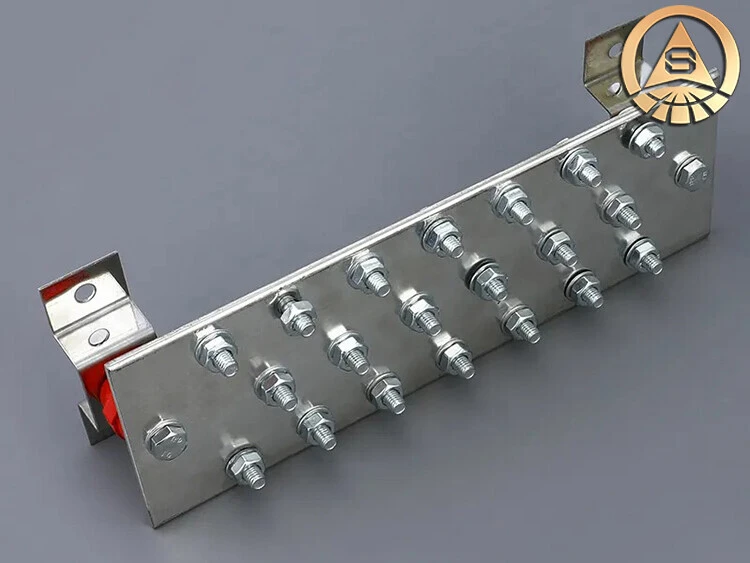

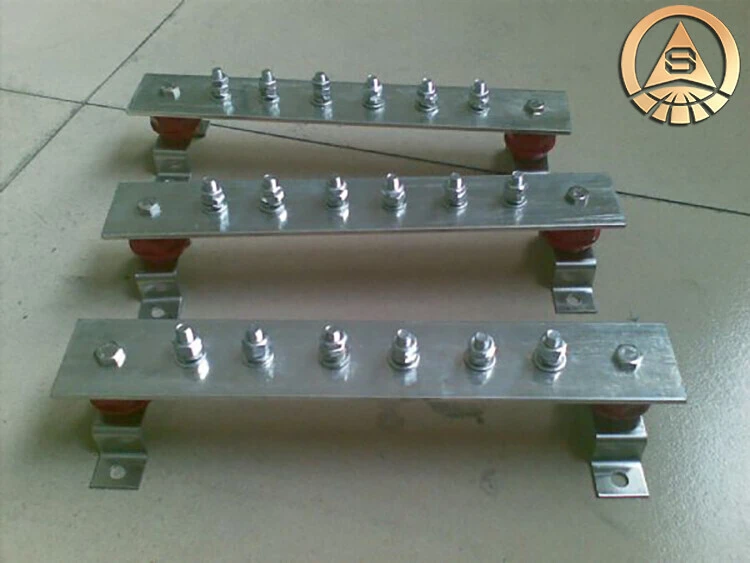

Grounding Bars Specification

Total No.of Holes	Lg.	Wd.	Thick.	Pattern	Dia.(No. of Holes)	Thread Size(No. of Holes)
5	12"	2"	1/4"	Linear	7/16"	/
6	6"	1"	1/4"	Linear	9/32"(2)	1/4"-20(1),10-32(3)
6	6"	2"	1/4"	Matrix	7/16"	/
9	6"	4"	1/4"	Matrix	7/17"	/
11	24"	2"	1/4"	Linear	7/18"	/
14	12"	3"	1/4"	Matrix	7/19"	/
18	12"	2"	1/4"	Matrix	7/20"	/
26	16"	2"	1/4"	Matrix	7/21"	/
27	12"	4"	1/4"	Matrix	7/22"	/
32	24"	4"	1/4"	Matrix	7/23"	/
39	16"	4"	1/4"	Matrix	7/24"	/
51	20"	4"	1/4"	Matrix	7/25"	/
63	24"	4"	1/4"	Matrix	7/26"	/

Product Application

Busbar is used for earthing system of power plant ,transformer station ,tower ,communication station ,airport, railway, subway station , high building ,computer room ,petro plant ,oil reservoir in the environmental of moist ,saline and alkaline ,acid and chemical corrosion medium environmenta

Product Details

Material

China	International Standards	USA	Japan	UK	Germany
T2	Cu-RTP	C11000	C1100	C101	R-Cu57
TU1	Cu-OF	C10200	C1020	C110	OF-Cu
TU2	Cu-OF	C10300	C1030	C103	OF-Cu
TP1	Cu-DLP	C12000	C1201	---	SW-Cu
H62	CuZn40	C27400	C2720	CZ109	CuZn40
H65	CuZn35	C27000	C2680	CZ107	CuZn36
H70	CuZn30	C26000	C2600	CZ106	CuZn30
H80	CuZn20	C24000	C2400	CZ103	CuZn20
H85	CuZn15	C23000	C2300	CZ102	CuZn15
H90	CuZn10	C22000	C2200	CZ101	CuZn10
QSn6.5-0.1	CuSn6	C51900	C5190	---	CuSn6
QSn8-0.3	CuSn8	C52100	C5210	---	CuSn8
QAl9-4	AlSi9Cu4	C95500	CAC702	AB1	CuA110Fe3Mn2
QCr0.5	Cr0.5	AISI 4140	708M40	SCM440	42CrMo4
CuNi30	CuNi30	---	---	CM390H	---
CuNi10Fe	CuNi10Fe	C71500	C7060	---	---
CuNi15	CuNi15	C70600	C7060	---	---

Chemical Composition

Brand	Cu+AG	P	Bi	Fe	Ni	Pb	Sn	Zn	S	O	Total impurities
C10200	99.95	0.001	0.001	0.005	0.002	0.003	0.002	0.005	0.005	0.02	0.05
C11000	99.9	--	0.001	0.005	--	0.005	--	--	0.005	--	0.1
C12500	99.7	--	0.002	--	--	0.01	--	--	--	--	0.3
C10100	99.99	0.0003	0.0001	0.001	--	0.0005	0.0002	0.0001	0.0015	0.0005	0.01
C10200	99.97	0.002	0.001	0.004	0.002	0.003	0.002	0.003	0.004	0.002	0.03
C10300	99.95	0.002	0.001	0.004	0.002	0.004	0.002	0.003	0.004	0.003	0.05
C12000	99.9	0.004-0.012	--	--	--	--	--	--	--	--	0.1
C64210	90	0.0001	0.0005	0.005	0.005	0.0005	0.001	0.001	0.0001	0.0005	0.001
C52480	60-70	0.0001	0.0005	0.005	0.005	0.0005	0.001	0.003-0.004	0.0001	0.0005	0.001
C50200	50	0.0001	0.0005	0.005	0.005	0.0005	0.001	0.005	0.0001	0.0005	0.001
C71100	70-80	0.0001	0.0005	0.005	0.005	0.0005	0.001	0.002-0.003	0.0001	0.0005	0.001
C70900	70-80	0.0001	0.0005	0.005	0.005	0.0005	0.001	0.002-0.003	0.0001	0.0005	0.001
C70600	60-70	0.0001	0.0005	0.005	0.005	0.0005	0.001	0.003-0.004	0.0001	0.0005	0.001
Cuzn10	90	0.0001	0.0005	0.005	0.005	0.0005	0.001	0.001	0.0001	0.0005	0.001
C12200	99.9	0.015-0.04	--	--	--	--	--	--	--	--	0.1
